High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas

High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas

Marchio: Flyon
Numero di modello: Curtain
MOQ: 50 metri quadrati
prezzo: $46-98/sqm
Condizioni di pagamento: T/T, Western Union, L/c
Capacità di approvvigionamento: > = 50000 metri quadrati/mese
Informazioni dettagliate
Luogo di origine:
Cina
Certificazione:
SGS/GB-18586
Materiale:
Tessuto
Colore:
Richiesta del cliente
Tasso del fuoco:
GB-8624
Resistenza allo strappo:
GB/T 3917.3-2009
Vantaggi:
Fireproof, Resistenza lacrima, ambientale, alta resistenza
Sistema di controllo:
Sistema elettrico
Imballaggi particolari:
Scatola di legno
Capacità di alimentazione:
> = 50000 metri quadrati/mese
Evidenziare:

High Strength Dividing Curtain

,

Fireproof Divider Curtain

,

Electric Control System Partition Curtain

Descrizione di prodotto
High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas
Special discounts available for new and existing customers. Contact us for specific pricing.
Single Curtain System Specifications
Product Name Dividing Curtain Total Hanging Weight ≤ 2.5 kg/m
Maximum Height 12m Hanging Spacing ≤ 3m
Maximum Width 36m Maximum Bearing Capacity (per lifting point) ≤ 80kg
Maximum Area 300m² Maximum Hanging Weight ≤ 750kg
Color Choices
High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas 0 High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas 1
Installation Safety Requirements
  • A safety gap of at least 50 cm should be reserved between this partition curtain system and the adjacent partition curtain or wall
  • A safety clearance of at least 15 cm should be left on the side without motor drive system
  • At least 5cm ground clearance shall be reserved between the bottom of the partition curtain and the ground
Product Advantages
  • Double layer curtain with high quality PVC for superior sound absorption
  • Integrated netting sections allow natural light transmission
  • Complete system includes all necessary materials and segments with aluminum truss carrier structure
  • User-friendly operation with multiple configuration options available
  • Complete system provided with tested and certified components
Electric and Control System
High-performance drum motor (220V, 450W, 120N/M) with internal planetary gear reducer, up-and-down position brake limiter, push-button limit switch, automatic reset and thermal overload protection system integrated in the middle winding drum. Ensures stable and reliable operation.
Packing and Shipment
High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas 2

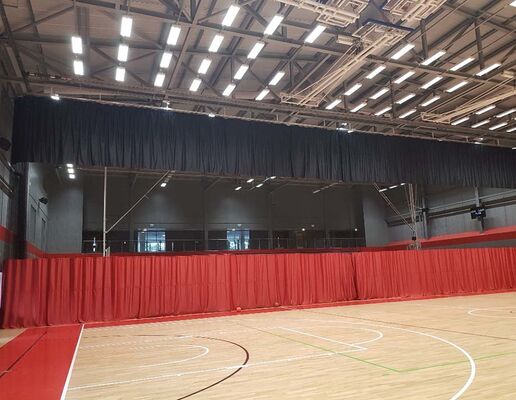

Project Presentation
High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas 3 High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas 4 High Strength Fireproof Fabric Dividing Curtain with Electric Control System for Indoor Outdoor Sport Areas 5
